Name: IRGM Sequence: fasta or formatted (181aa) NCBI GI: 224809576
Description:

immunity-related GTPase family, M

Referenced in:

Additional Guanine Nucleotide-binding Proteins
Additional Membrane Functions

Composition:

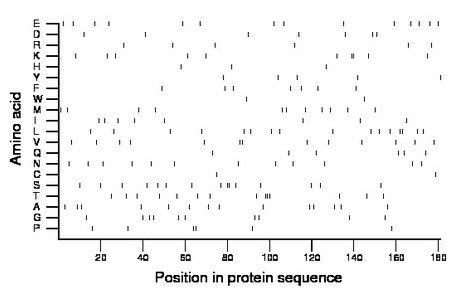

amino acid map
 Amino acid        Percentage    Count  Longest homopolymer
 A alanine             7.7         14           1
 C cysteine            1.1          2           1
 D aspartate           3.9          7           1
 E glutamate           7.7         14           1
 F phenylalanine       3.9          7           1
 G glycine             5.5         10           1
 H histidine           1.7          3           1
 I isoleucine          4.4          8           1
 K lysine              5.5         10           2
 L leucine             8.8         16           2
 M methionine          6.1         11           1
 N asparagine          6.6         12           1
 P proline             3.3          6           2
 Q glutamine           3.3          6           1
 R arginine            3.3          6           1
 S serine              8.3         15           2
 T threonine           7.7         14           3
 V valine              7.2         13           2
 W tryptophan          1.1          2           1
 Y tyrosine            2.8          5           1
Comparative genomics:

Search single species RefSeq proteins at NCBI
   H. sapiens
   M. musculus
   D. rerio
   C. intestinalis
   S. purpuratus
   D. melanogaster
   C. elegans
   A. thaliana
   S. cerevisiae
   E. coli W3110
   A. pernix K1

Search summary

comparative genomics plot

   Figure data

Additional searches of
RefSeq proteins at NCBI

   All
   Eukaryotes
   Bacteria
   Archaea
   Viruses
   Primates
   Mammals
   Vertebrates

Related human proteins:
Protein          Relative score         Description

Self-match            1.000   immunity-related GTPase family, M
IRGC                  0.205   immunity-related GTPase family, cinema
EMR3                  0.012   egf-like module-containing mucin-like receptor 3 [H...
NCKAP1L               0.009   NCK-associated protein 1-like
DNM2                  0.009   dynamin 2 isoform 4
DNM2                  0.009   dynamin 2 isoform 2
DNM2                  0.009   dynamin 2 isoform 1
DNM2                  0.009   dynamin 2 isoform 3
Human BLASTP results (used to prepare the table)

Gene descriptions are from NCBI RefSeq. Search results were obtained with NCBI BLAST and RefSeq entries. When identical proteins are present, the self-match may not be listed first in BLASTP output. In such cases, the table above has been reordered to place it first.

See About the Figures for the scoring system used in the figure above right. The same scoring system was used in the table of BLASTP results.
